Tiara Yachts | 2017
F53 Flybridge

Vessel Features, Highlights and Customizations

• World class Tiara build quality and innovation
• Volvo IPS II 950 power package with JOYSTICK CONTROLS, OPTIONAL DYNAMIC POSITIONING and extremely low hours
• SEA KEEPER 9 GYRO STABILIZER (Optional)
• Volvo and GARMIN  integrated electronics package (2) 7616 touch screen multi function displays with chart plotter, radar and depth sounder functions.
• Garmin Auto pilot and VHF Radio
• (Optional) Grand salon layout with no lower helm
• (Optional) Three stateroom 2 head interior layout
• Innovative Forward VIP stateroom berths that slide together for island queen or separate outboard for 2 single berths
• Innovative galley aft layout ideal for entertaining and desired proximity to aft deck
• Aft deck second joystick docking station (Optional)
• Grey painted hull sides, black boot stripe with matching black painted underside of flybridge hard top (Optional)
• Hydraulic swim platform (Optional)

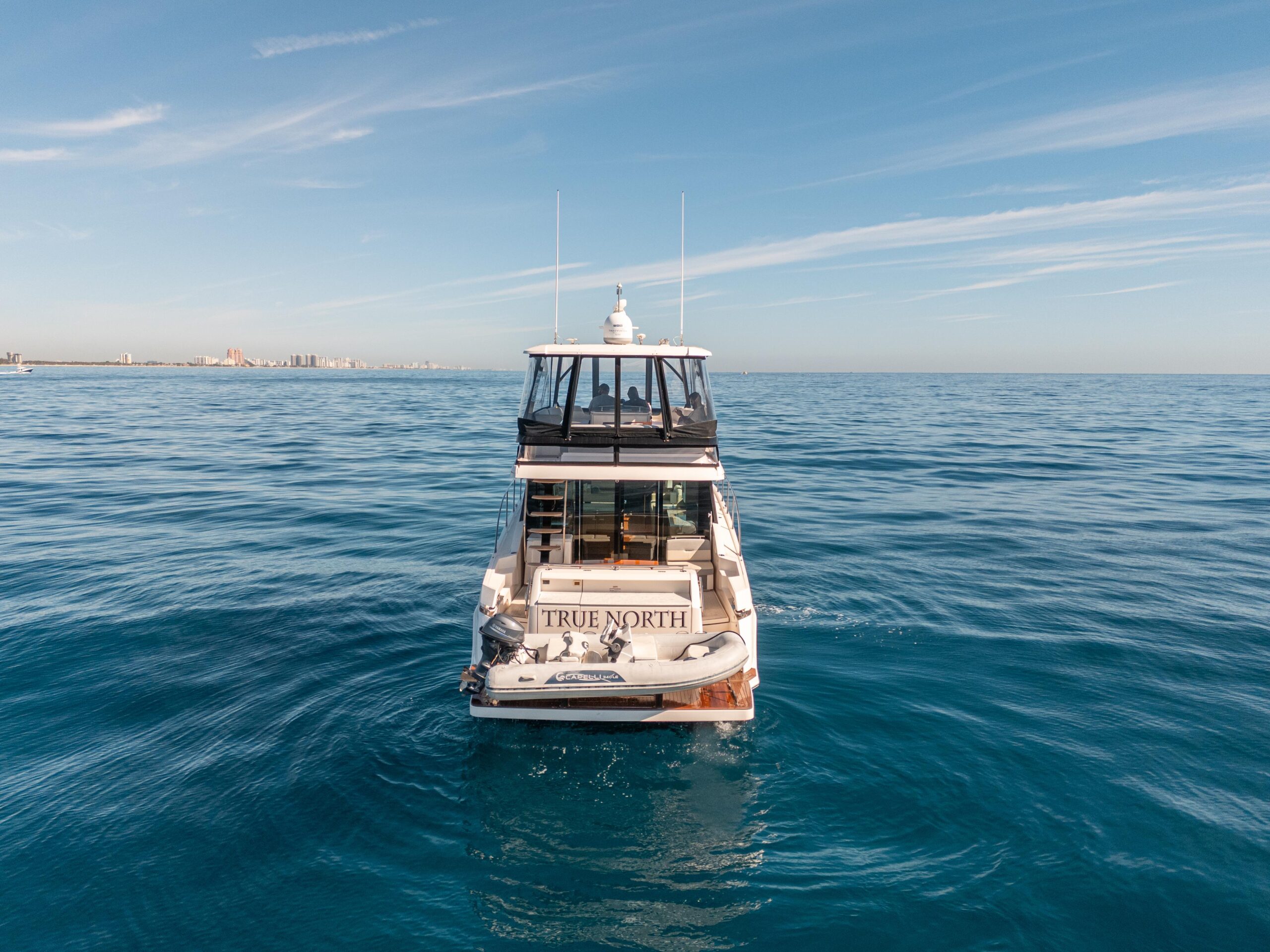

• Tender included Capelli 340 LE rigid bottom inflatable with 25hp Yamaha outboard
• Flybridge and multi zone air conditioning system
• Full flybridge enclosure for a weather protected and climate controlled environment, black trim (NEW 2024)
• Underwater Lights (Optional)
• Aft deck grill (Optional)
• Hydraulic aft storage garage
• Aft deck ice maker (Optional)
• Solid wood floors in galley and salon
• Galley wine chiller (Optional)
• Double raised galley storage cabinets(Optional)
• Audio visual package throughout
• Flybridge wet bar with fridge and ice maker (Optional)

| Hull and Deck

• Hull constructed with a gelcoat outer layer, balsa cored hull sides and hand-laid fiberglass using premium resin

• Deck constructed with a gelcoat outer layer, balsa and hand-laid fiberglass using premium resin

• Deck side engine air intake system with built-in step for boarding

• Bronze seacocks on all underwater thru-hull fittings

• Tiara custom diamond pattern non-skid deck and cockpit surfaces

• Wood and foam core stringers, encapsulated by hand-laid fiberglass, are integrated to the hull

• Gel coated and fiberglass-lined bilge areas

• Molded in hull side windows with opening ports

• Poly rubrail with 316L stainless steel cap

• Eight (8) 12″ stainless steel cleats for lines

• Tiara custom composite flybridge, aluminum windshield frame with tempered safety glass, safety handrails and a windshield wiper system with three (3) washer/wipers

• LED navigation and courtesy lights

• Two (2) Coats of Anti-fouling Bottom Paint

Foredeck

• One (1) Bomar® extruded aluminum opening forward deck hatch with built-in Ocean Air® screens and privacy covers

• One-piece welded, 316L S.S. 1 1/4″ bow rail, staff, and Tiara burgee

• Flush forward anchor locker with overboard drain

• Concealed Lewmar CPX3 automatic rope/chain anchor windlass system with Lewmar’s handheld tethered deluxe remote control and a switch at helm

• Windshield cover

• Three skylights with built-in blinds

• 120V outlets throughout

• 12V LED lighting throughout

| Salon and Helm Area

• Aft window and sliding doors with duette blinds

• Duette blinds for port and starboard salon windows

• 40″ Smart TV UHD 4K mounted on a hi-lo actuator (concealed when not in use) and storage compartment. Includes Soundbar and Blu-Ray player.

• Fusion® UD755 multi-zone stereo system powered by JL Audio® M800 digital amp with four (4) JL Audio® interior speakers, one (1) JL Audio® 8″ subwoofer speaker with tuned enclosure.

• Marine Air Systems® 40,000 BTU salon air conditioning system

• Opening port and starboard side windows

• Starboard side loveseat with electrical panel access and storage

• Port L-lounge sofa with storage and high gloss teak table on actuated hi-lo pedestal. Seating for five.

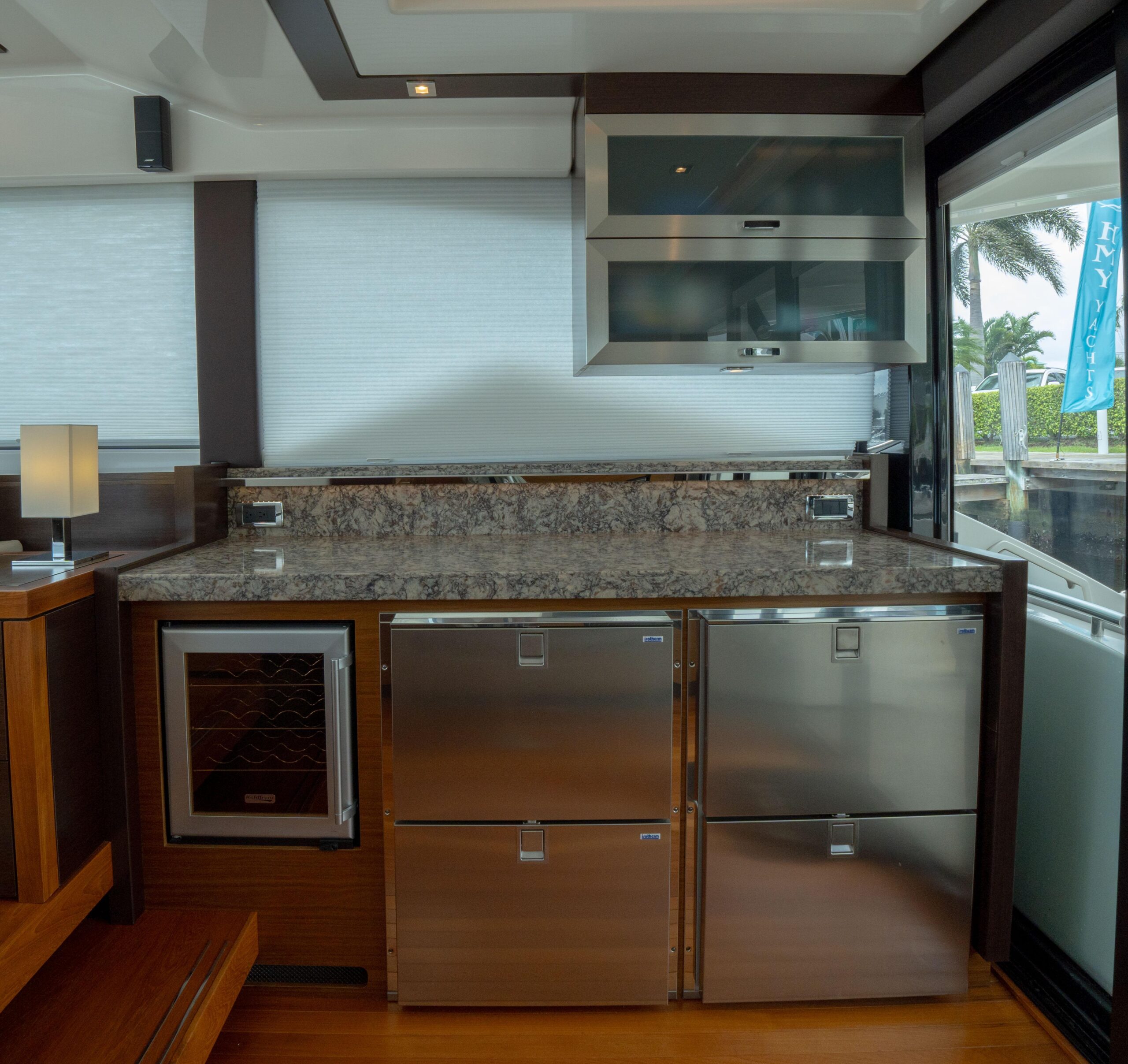

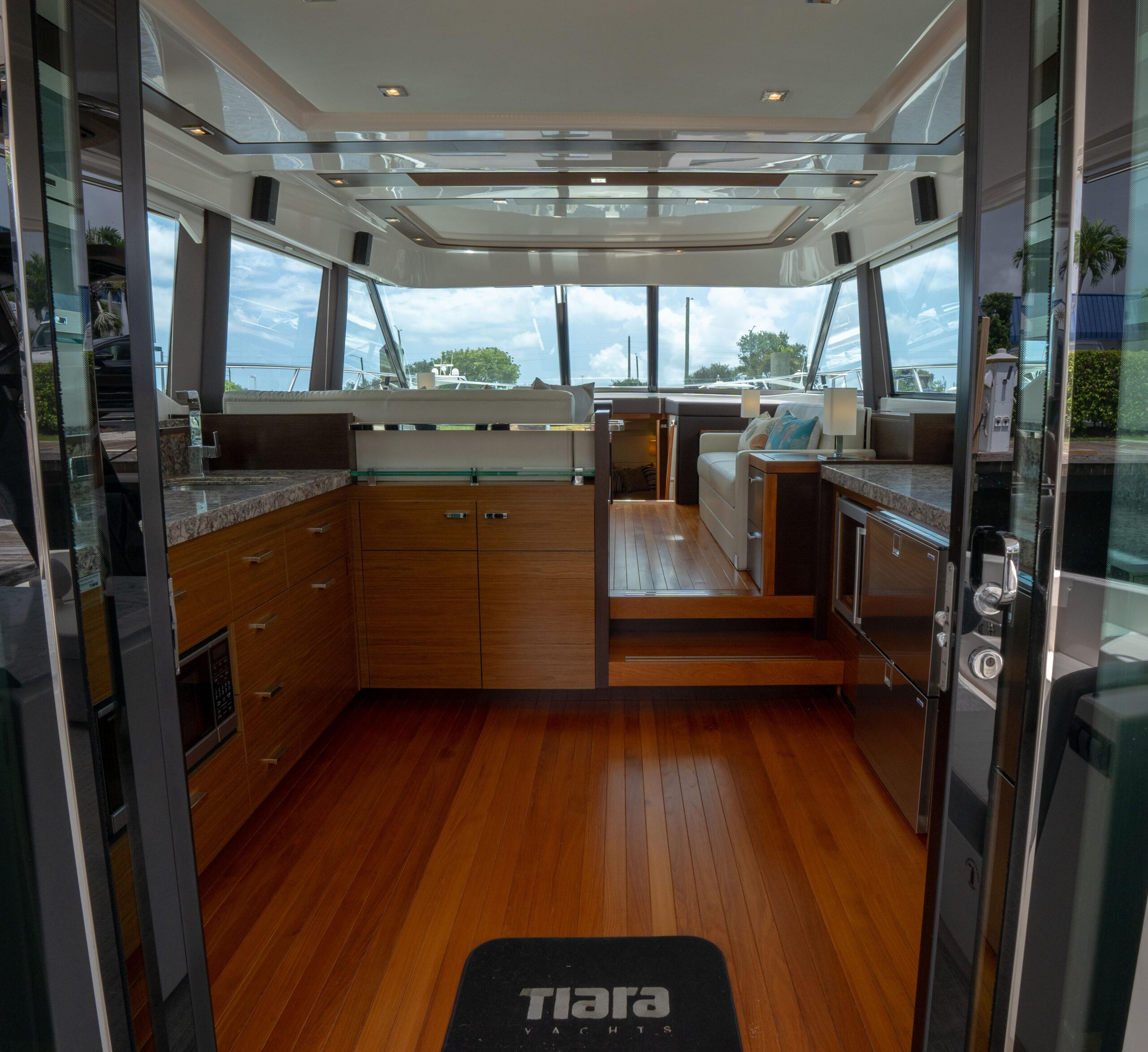

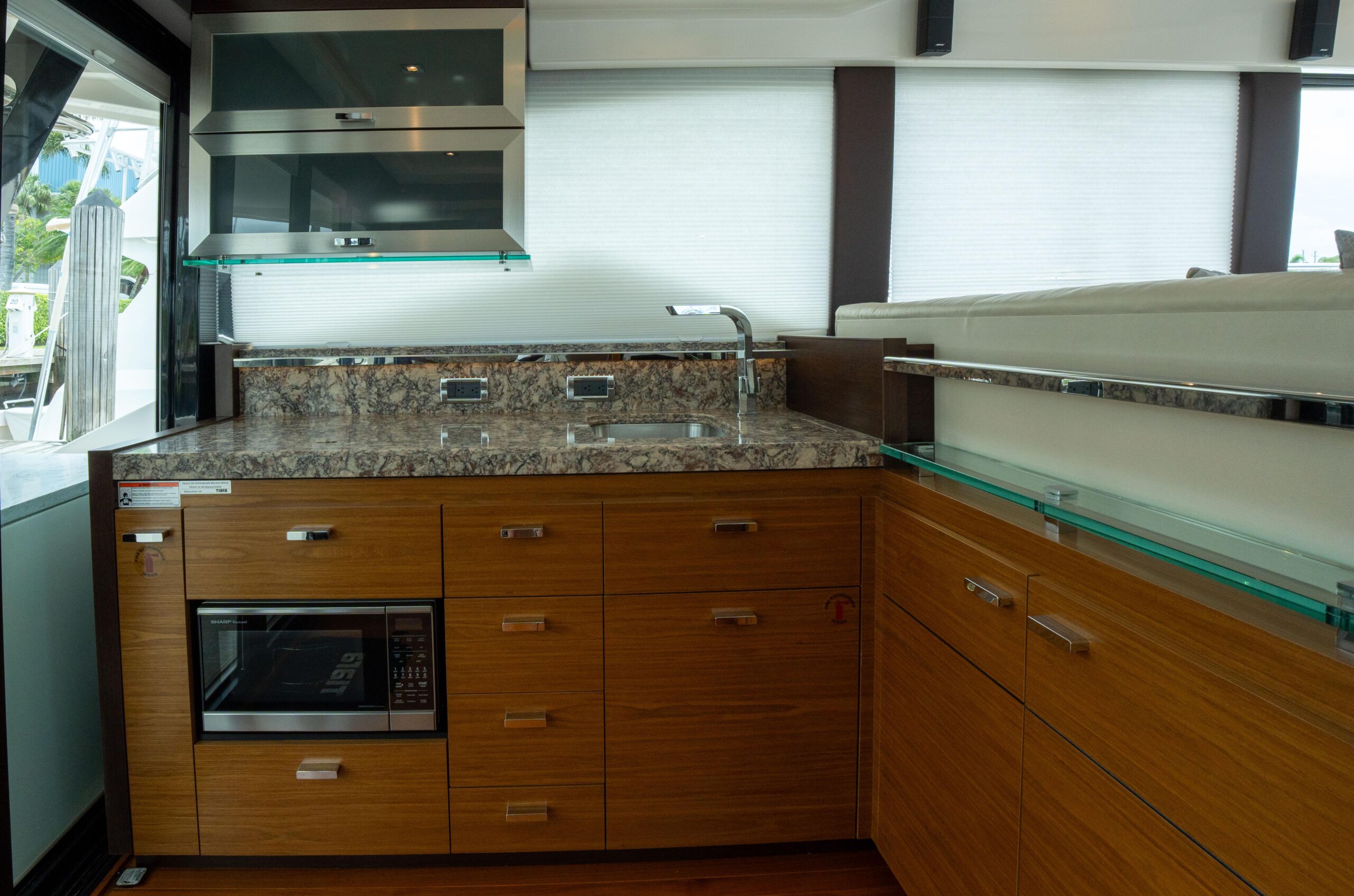

| Central Galley

• Safety handrails

• Quartz countertops

• Stainless Steel undermount sinks with hot/cold water faucet

• Recessed three-burner electric cooktop, exhaust fan and backsplash

• Dual Isotherm® 120V drawer units – (1) refrigerator/refrigerator and (1) refrigerator/freezer

• Microwave/convection oven

• Storage drawers below counter top

• Upper galley cabinets, port and starboard

• Trash receptacle

| Master Stateroom

• Private entrance to master stateroom and head

• Full beam master stateroom with hull side windows for natural lighting and blinds for windows. Opening ports for ventilation in master stateroom and head. Port blind is electrically controlled.

• Carpeted floor

• Olympic queen pedestal berth with pillowtop innerspring mattress, coverlet, pillow shams, accent pillows and sheets

• Divided storage compartment below berth, manually actuated with gas springs

• Shelves, starboard side, fore and aft of headboard

• Port side lounge/settee with accent pillows

• Cedar-backed hanging locker

• Overhead indirect LED lighting

• Two (2) LED reading lights, independently switched

• Marine Air Systems® 16,000 BTU air conditioning system for master stateroom and master head

• Samsung® 32″ flat screen TV

• Samsung® Blu-Ray DVD player

• Four (4) JL Audio® 4″ speakers with Fusion® remote

• Recessed chaise lounge sun pad with cup holders and handholds. Upholstered in your choice of Ultraleather® and includes weather cover.

Master Head

• Full frame door with private master stateroom entry

• Fiberglass stall shower with sump pump, glass shower door and teak seat. Overhead waterfall shower head.

• Teak countertop with Corian® accents, vessel sink, hot/cold water faucet

• Lighted upper medicine cabinet with mirror

• Lower vanity storage

• Privacy shades for opening portlights

• Solid teak floor

• VacuFlush® push button toilet

• Exhaust fan

• Air conditioning vent (controls in master stateroom)

• GFI protected outlets

| VIP Stateroom

• Private entry to VIP head

• Solid teak floor with carpeted risers

• Queen size pedestal berth, splits to make double berths. Innerspring mattresses, coverlet, pillow shams, accent pillows, sheets and storage under the berths.

• Bi-fold entry doors

• Cedar-backed hanging locker, starboard

• Upper hull side cabinets, port and starboard

• (2) Opening portlights with privacy shades

• Opening deck hatch

• Two (2) LED reading lights, independently switched

• Marine Air Systems® 10,000 BTU air conditioning system

• Two (2) JL Audio® 6.5″ speakers with Fusion® remote

VIP/Day Head

• Full frame doors with entry from VIP stateroom and atrium

• Fiberglass stall shower with sump pump, glass door and teak seat

• Teak countertop with Corian® accents, vessel sink, hot/cold water faucet

• Lighted upper medicine cabinet with mirror

• Lower vanity storage

• Solid teak floor

• VacuFlush® push button toilet

• Exhaust fan

• Air conditioning vent (controls in VIP stateroom)

| Interior

• Architectural teak and beechwood interior wood with grain-filled finish and Chilewich® wall covering throughout

• Solid teak floor in salon, lower atrium, utility room, and VIP/forward stateroom. Master stateroom and risers in forward VIP stateroom are carpeted.

| Transom Area

• Dual transom entry doors with stainless steel frame and hardware

• Stainless Steel grab rails on transom

• Transom storage compartment with fiberglass liner and one-piece actuated door. Dedicated storage with easy access to items and large opening to the trunk space.

• Two (2) 10″ stainless steel pop-up cleats

• 70″ integrated swim platform with telescoping stainless steel swim ladder

• Recessed transom shower, hot and cold water

• Fresh water washdown outlet with 25 ft. coiled blue hose

• Raw water washdown outlet with 25 ft. coiled yellow hose

• 120V GFI outlet

| Aft Cockpit

• Storage with access in cockpit sole

• Molded-in forward facing lounge

• Teak aft cockpit table with ottomans

• Molded-in steps to deck walkways and swim platform. Safety handrails above deck walkway steps.

• Cockpit LED courtesy lighting with remote control

• Starboard cockpit aft facing seat with storage below

• (See Salon and Helm Area for main stereo component details) Two exterior JL Audio® 7.7″ component speakers, one (1) JL Audio® Audio 8″ subwoofer speaker and Fusion® remote

• Aft cockpit camera

| Flybridge

• Aluminum floating steps with teak step treads and stainless steel rails

• Access hatch for flybridge steps

• Framed plexiglass Venturi windscreen with safety rails

• Double wide helm seat on electric slide

• Centerline console with Garmin electronics package

• Hardtop with arch and forward supports, two (2) Bomar® hatches

• Entertainment center with refrigerator, sink, cutting board, trash receptacle, and storage

• Forward U-lounge with top access storage and removable drink holder/storage

• Aft U-lounge, with hi-lo high gloss teak table that converts to sunpad

• (See Salon and Helm Area for main stereo component details) Four (4) JL Audio® 6.5″ speakers and one (1) JL Audio® 8″ subwoofer speaker powered by JL Audio® M800 digital amplifier.

• Weather covers for helm console, helm chairs

• Red/white/blue LED hardtop lights

| Instrumentation, Safety and Equipment

• Tiara custom 12V/24V DC and 120V/240V AC electrical system with master distribution panels

• Two(2) 240V A C 50 amp 65’ dockside power cord with Glendinning cable recoiler & adaptors for 30 amp service

• Cable TV inlets/outlets with 65′ dockside cord

• TV & AM/FM radio antennas

• Onan® 17kW diesel generator with sound shield & helm indicator

• (2) Battery chargers, 80 amp & 16 amp

• 12V/24V multiple bank battery system with batteries & remote battery switches. Four (4) engine batteries and two (2) house batteries

• Electrical bonding system with Galvanic Isolator and ELCI Ground Fault Protection

Volvo® engine option includes:

• DPS (Dynamic Positioning System)

• Active Corrosion Protection

• Volvo® electronic engine controls and steering system

 • Low speed, cruise control & trip computer software

 • Volvo® IPS Joystick Plus control

 • Volvo® exhaust bypass

 • Three (3) port oil changing system, main engines and generator

 • Volvo® Glass Cockpit integrated electronics package:

 • Two Volvo® 7616 16″ displays with GRID armrest remote

 • Volvo®/Garmin® autopilot

 • Joystick steering

 • Garmin® GMR 624xHD 4 ft./6kw open array radar and pedestal

 • Garmin® VHF315 and GHS11 handheld radios

 • 1kW transducer

• High output alternators, 115 amp

• Ritchie® SuperSport SS2000 compass

• Propellers

• Trim tabs

• Zinc Sacrificial Anodes

• Engine room with lighting and acoustical insulation

• Racor® fuel filters/water separators, engines and generator

• Raw water intake strainers, engines and generator

• Vibration isolating mounts, engines and generator

• Plate mounted, thru-bolted engine system. Three (3) automatic/manual electric bilge pumps with monitors at helm, 2,000 GPH each; one (1) forward, one (1) mid & one (1) aft

• One (1) aluminum fuel tank, total capacity 650 gallons with in-line fuel vent filters, fuel shut-off valves on top of tank and fills on both port and starboard sides.

• Dockside water inlets, aft deck & anchor locker

• One (1) fresh water tank, total capacity 150 gallons

• One (1) holding tank, 86 gallons, with deck discharge and holding tank vent filter

• Fresh water tank/holding tank monitor

• Fresh water pressure system with two, four (4) GPM pumps

• One (1) water heater, 20 gallons

• Kahlenberg® chrome dual trumpet air horn

• FE-227 agent automatic/manual fire extinguisher system for engine room

• Four (4) handheld fire extinguishers

• Carbon monoxide detectors and smoke detectors in all staterooms and salon
